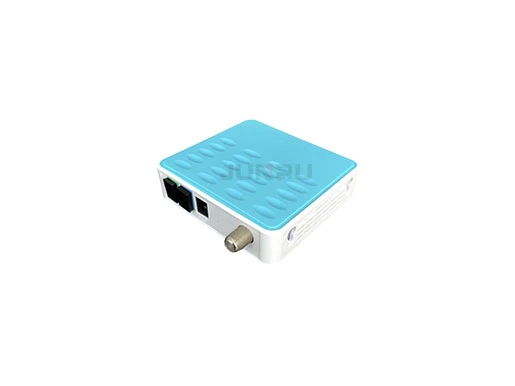

The node is a mini in-door optical receiver build in WDM, design for FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption. It is single mode fiber-pigtailed and is available with various connector options.
| Item | Description | Value | Unit | Conditions / Notes |
| Optical Specifications (Forward Path) | ||||
| 1 | Wavelength | 1550/1490/1310 | nm | Com port |
| 1490/1310 | nm | For ONT | ||
| 2 | Optical Power Input Range | -18～+2 | dBm | |
| 3 | AGC Range | -2～-12 | dBm | |
| 4 | Optical Input Return Loss | ≥45 | dB | |
| RF Specifications (Forward Path) | ||||
| 4 | Bandwidth | 47～1003 | MHz | |
| 5 | Flatness | ±1.0 | dB | 47～1003MHz，At 25 ℃ |
| 6 | Slope | 0~2.0 | dB | 47～1003MHz，At 25 ℃ |
| 7 | Temperature Stability | ±1.5 | dB | In the operating temperature range (-25 ~ +65 ℃) |
| 8 | Output Level | 75±2 | dBuV | -15dBm input optical power, The analog channel，per channel modulation 4.0%, in the 860MHz point test, at 25℃ |
| 9 | Impedance | 75 | Ohm | |
| 10 | Return Loss（47～1000MHz） | ≥12 | dB | At 25 ℃ |
| 11 | MER | ≥30 | dB | -15~-5dBm input optical power |
| ≥24 | dB | -20~-16, input optical power | ||
| 12 | Power | < 1.0 | W | |
| Environmental Parameters | ||||
| 13 | Operating Temperature | -25～65 | ℃ | |
| 14 | Storage Temperature | -40～70 | ℃ | |
| 15 | Storage Humidity | ≤95 | ％ | Non- condensation |
| User Interface | ||||
| 16 | Optical Connector Type | SC/APC in, | SC Optional, | |
| SC/PC out | See the figure4 and5 | |||
| 17 | Power supply | DC5V/0.5A | External adapter, See the figure3 | |
| 18 | RF Output | RG6 Connector | Optional, | |
| 1 or 2 ports | See the figure1 and2 | |||
| 19 | Optical Indicator | Shine Red or | Optical power <-16dBm, red | |

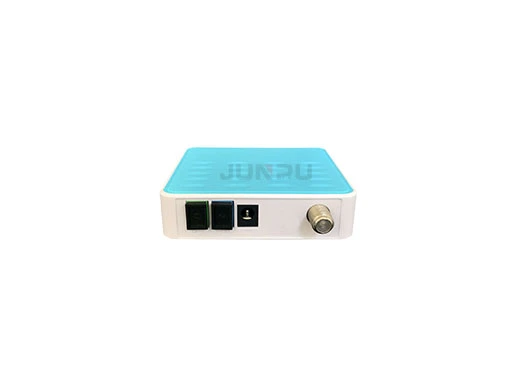

No | Interface | Description |
1 | RF OUT | RF OUT1 F connector |
2 | RF OUT2 optional | |
3 | PWR | Power adaptor port |
4 | PON | 1490/1310mn data interface SC/PC |
5 | Optical Input | 1550/1490/1310mn Optical input SC/APC |
1 GHz operating bandwidth;
Lower input optical range:+2~-18dBm;
Output level up to 76dBuV (@-15dBm power input);
2 RF Output optional;
Low power consumption<1.0W.
