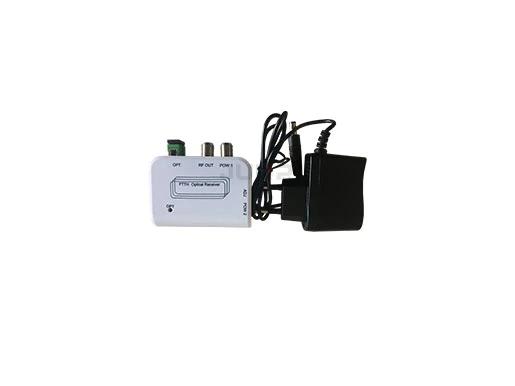

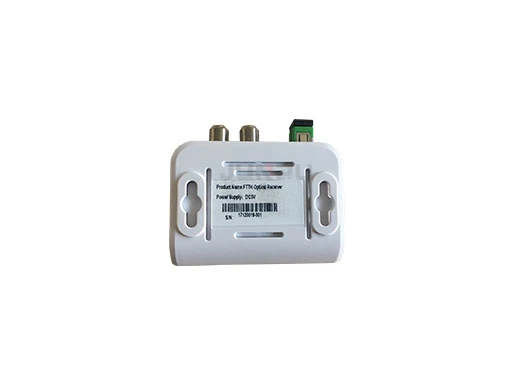

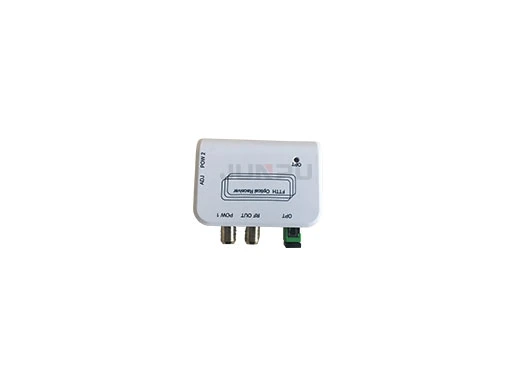

JPX86RF, the operating bandwidth of 47~1000MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television. Products with high sensitivity optical receiver tube and special low noise matching circuit. Receiving at high optical power can be adjusted by PAD level, played limiting output, so SR2020AW within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics.
Triple play, fiber to the home, using the JPX86RF can save a lot of optical fiber amplifier power resources. For operators, it can greatly reduce the cost of building the network.
| No | Description | value | Unit | Conditions / Notes |
| 1 | Wavelength | 1100～1600 | nm | 1550nm with filter |
| 2 | Optical Power Input Range | -20～-1 | dBm | Recommend -18 to -1 |
| 3 | Optical Input Return Loss | ≥45 | dB | |
| 4 | Bandwidth | 47～1003 | MHz | |
| 5 | Flatness | ±0.75 | dB | 47～1000MHz，At 25 ℃ |
| 6 | Slope | 0~1.0 | dB | 47～1000MHz，At 25 ℃ |
| 7 | Temperature Stability | ±1.0 | dB | In the operating tem range (-25 ~ +65 ℃) |
| 8 | Output Level | 70±2 | dBuV | -15dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, at 25 ℃ |
| 9 | Impedance | 75 | Ohm | |
| 10 | Return Loss（47～1000MHz） | ≥14 | dB | At 25 ℃ |
| 11 | MER | ≥34 | dB | -15~-4dBm input optical power |
| 12 | Power | < 0.8 | W | |
| 13 | Operating Temperature | -25～65 | ℃ | |
| 14 | Storage Temperature | -40～70 | ℃ | |
| 15 | Storage Humidity | ≤95 | ％ | Non- condensation |
| 16 | Optical Connector Type | SC/APC | FC/ST Optional | |
| 17 | Power interface | DC5V/0.5A | External adapter | |
| 18 | RF Output Connector | F connector | 2 out optional | |
| 20 | Dimension | 74×64×27 | mm | |
| 21 | Weight | 0.15 | kg |
Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45.3dB).
Wide dynamic receiving optical power range: within Pin=-16, MER≥36.1dB.
Applicable GPON, EPON, compatible with any FTTx PON technology.
Can save a large number of optical power resource, greatly reduce the network.
configuration cost.
Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±0.75dB ).
Metal case, offer a safeguard for optoelectronic sensitive devices.
High output level, can be used by many users.
Low power consumption, high performance, high cost performance.
CATV FTTH
Integration of three network
FTTH PON
