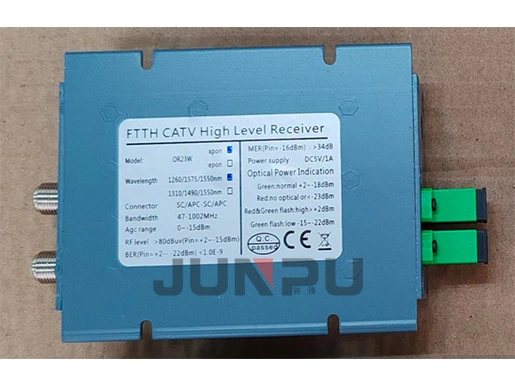

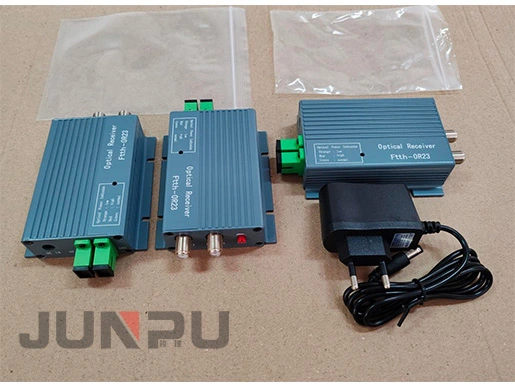

JUNPU OR23WX FTTH optical receiver is specifically designed for CATV FTTH a n d XGS-PON network. Its main feature is low power consumption, AGC optical constant level output, small Volume and high reliability. Adopting aluminum alloy shell, with optical control AGC circuit built in, compact structure and external modular power supply make the installation and debugging very convenient. It is an ideal product to build FTTH CATV, XGS-PON network and 10G network.
| Number Item | Unit | OR23WX FOR XGS-PON |
| RF Connector | F-female | |
| Input Optical Connector | SC/APC or FC/APC | |
| Output Optical Connector | N/A SC/APC or FC/APC | |
| Work Temp | °C | -20~+50 |
| Responsivity | A/W | ≥0.9 |
| Input Optical Power | dBm | -10~+2 |
| Optical Return Loss | dB | ≥45 |
| Input Wavelengthnm | nm | 1260~1620 & 1550 |
| Receive Wavelength | nm | 1550 |
| Bypass Wavelength | nm | 1310/1490 |
| Optical Fiber Type | Single Mode | |
| Frequency Range | MHz | 45-1000 |
| Flatness | dB | ±0.75 |
| Output Level | dBμV | ≥82 |
| AGC range | dB | -2~-12 & -5~-15 |
| CNR | dB | ≥53.6(-2dBm Input Power) |
| CTB | dB | ≥65 |
| CSO | dB | ≥62 |
| Retum Loss | dB | ≥14 |
| Output impedance | Ω | 75 |
| Power Supply | VDC | 12V |
| Power Consumption | W | ≤3 |
