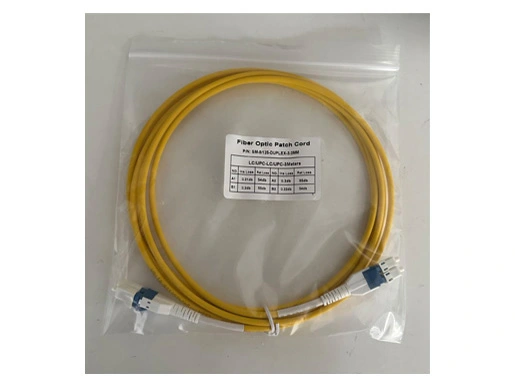

Uniboot LC-LC Duplex Fiber Optic Patch Cord is important of optical network. Fiber optic patch cord is available in both singlemode and multimode versions. Both single mode and multimode versions of fiber optical patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40℃~+60℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 |
Low insertion loss and hight return loss.
Excellent repeatability and changeability
Simplex and duplex available.
With ceramic fettules.
PVC&LSNH cable option.

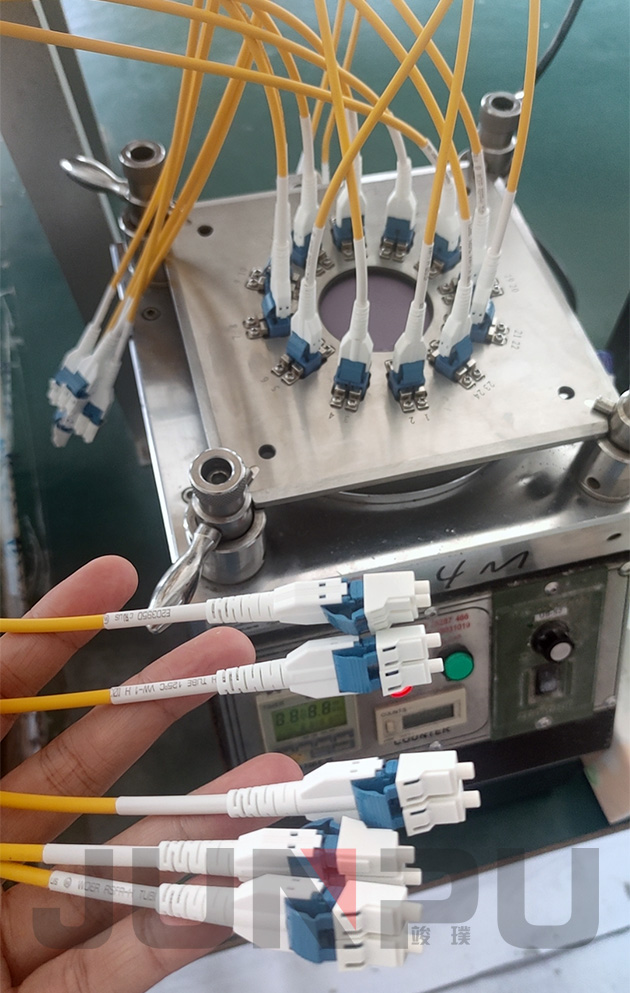

Optical performance 100% factory test.
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
