Fiber Optic Splice Enclosure Types & Selection Guide

Damaged fiber joints cause 43% of network failures. Choosing the right splice enclosure prevents costly downtime and ensures long-term signal reliability. Fiber splice enclosures protect delicate fiber optic connections from moisture, dust, and physical damage. They come in different types for various environments (indoor/outdoor), sealing methods (mechanical/heat shrink), and core capacities (12-96 cores). The right choice depends on installation conditions and maintenance needs [^1]. Many engineers regret choosing enclosures based only on price. Let me show you how to match enclosure types to your specific project requirements.

What is a Splice Enclosure?

Imagine losing all internet connectivity because a squirrel chewed through exposed fiber joints. Splice enclosures prevent this nightmare.A fiber splice enclosure is a protective housing that safeguards spliced fiber connections. It provides mechanical protection, environmental sealing (IP68 for outdoor use), and organized cable management [^2].

Core Functions of Splice Enclosures

①Physical Protection

Shields fibers from bending, crushing, and animal damage

Metal/plastic housings withstand impacts up to 500N pressure

②Environmental Sealing

③Cable Organization

Modular trays allow labeled, accessible splices

Typical capacity ranges: 12/24/48/96 cores At Junpu, we add color-coded trays and pre-installed gaskets to simplify installations [^5].

Basic Structure of a Fiber Splice Enclosure

A typical fiber optic splice enclosure consists of several key components that work together to protect and organize the fiber splices. Standard enclosures contain: 1) Housing, 2) Cable fixation clamps, 3) Splice trays, 4) Sealing system. Outdoor models add UV-resistant materials and waterproof ports [^5].

Critical Components Explained

1. Housing Materials

PP Engineering Plastic: Lightweight (0.8-1.2kg), costs $8-$15

Aluminum Alloy: Heavy-duty (2-3kg), costs $25-$40, better for high-vibration areas

2. Splice Tray Types

Stackable trays (holds 12 splices each)

Swing-out trays for easier access 3. Sealing Systems Comparison

Types of Splice Enclosures

Learn to pick the right type first time. Enclosures are categorized by: 1) Environment (indoor/outdoor), 2) Sealing type (mechanical/heat shrink), 3) Core capacity (12-96 fibers). Each serves different project needs [^6].

By Installation Environment

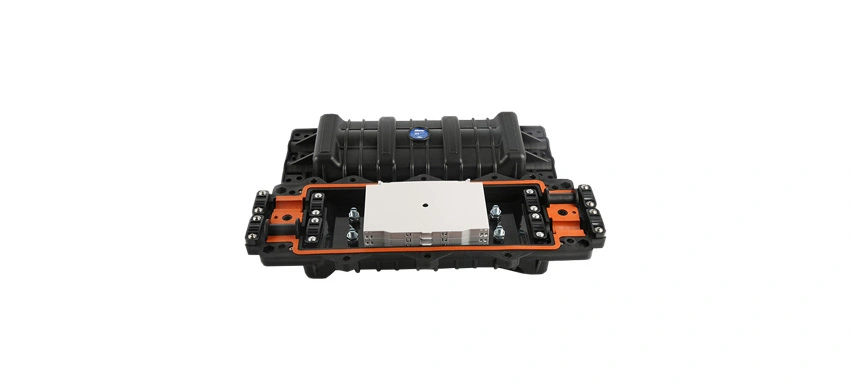

Outdoor Enclosures

1. Must meet IP68 standards

2. Our GJS-D001 model handles typhoon conditions (tested at 160km/h winds)

3. Typical applications:

• Telephone poles

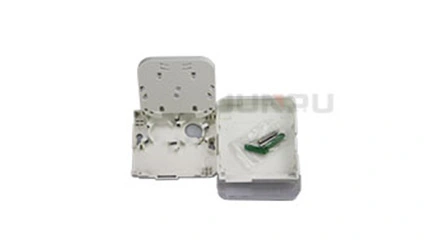

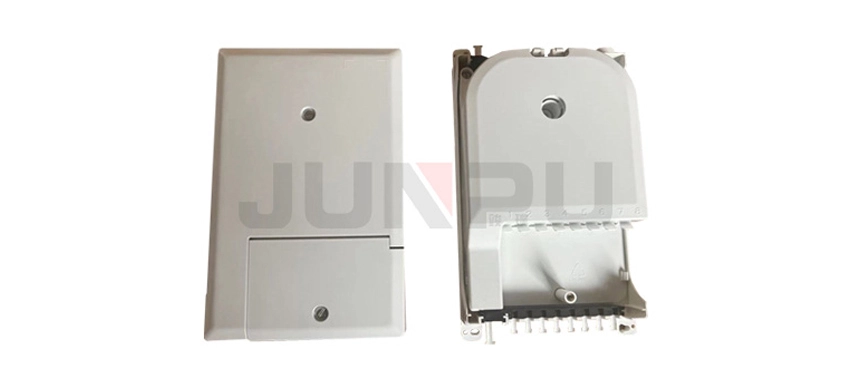

• Underground conduits Indoor Enclosures

1. Compact sizes (e.g., 200×150×60mm)

2. Wall-mount models save space

3. Key features:

• Fire-retardant materials (UL94 V-0 rated)

• Tool-less access for frequent maintenance

By Sealing Structure

Comparison of Sealing Types

By Fiber Capacity

• 12-core: Suitable for small-scale installations such as home or single-point connections.

• 24-core: Ideal for small network nodes, offering a moderate fiber capacity.

• 48-core: Suitable for medium-sized networks like FTTH (Fiber to the Home) or FTTB (Fiber to the Building) installations.

• 96-core: Designed for large-scale backbone or trunk networks where high-density fiber connections are required.

How to Choose the Right Fiber Splice Enclosure

Follow these 5 selection criteria instead. Select enclosures based on: 1) Installation environment, 2) Fiber count needed (current + future), 3) Required protection level, 4) Maintenance frequency, 5) Budget constraints [^3].

Selection Checklist

1. Environmental Factors

Outdoor: Choose IP68 with UV protection

High humidity: Heat shrink or gel seals

2. Scalability Needs

3. Total Cost Analysis

Mechanical seals: Lower upfront cost ($15) but higher maintenance

Reopenable: Higher initial price ($50) but 10-year lifespan Case Study: A Jakarta ISP reduced failures by 68% after switching to our IP68 dome enclosures [^1].

Splice Enclosure vs. Junction Box

Using the wrong box type increases signal loss by 3dB. Know the differences to avoid costly mistakes. snippet paragraph: Splice enclosures protect permanent fiber splices, while junction boxes house temporary connector joints. Enclosures offer superior sealing; boxes allow quicker access [^4].

Key Differences

Choose fiber splice enclosures based on environment, core capacity, and sealing needs - this ensures network reliability and cost efficiency [^6].

My Insight

At Junpu, we’ve worked with thousands of network engineers across diverse FTTH, FTTB, and backbone projects. One thing we know for sure: choosing the right splice enclosure type isn't just about sealing a joint — it’s about ensuring long-term stability, maintenance flexibility, and future scalability.

Here’s how we see it:

Mechanical seal closures are a great entry-level choice for quick installs in standard environments — affordable and easy to reopen.

Heat-shrink sealed enclosures offer superior waterproofing, ideal for harsh outdoor conditions, but require more effort to maintain.

Re-openable modular enclosures are our go-to recommendation for urban fiber deployments, where adaptability and long-term access are key.

We design our splice enclosuraes with these real-world challenges in mind — from 12-core to 96-core models, indoor wall-mount to IP68-rated outdoor types.

If you're building or expanding a network, choosing the right enclosure type could save you time, labor, and cost for years to come.

Let’s build smart, scalable fiber infrastructure — together.

Get A Quote

FAQ

What is the lifespan of a fiber splice enclosure?

The typical lifespan of a fiber splice enclosure is 20 to 25 years, depending on the material quality, sealing type, and installation environment. High-quality enclosures with IP68 waterproof ratings and UV-resistant housings can withstand harsh outdoor conditions and offer long-term protection for fiber optic splices, reducing maintenance costs and network downtime.
