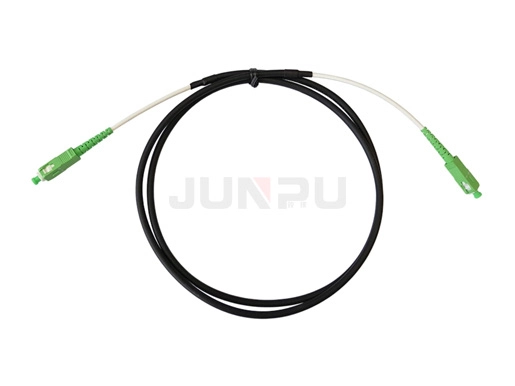

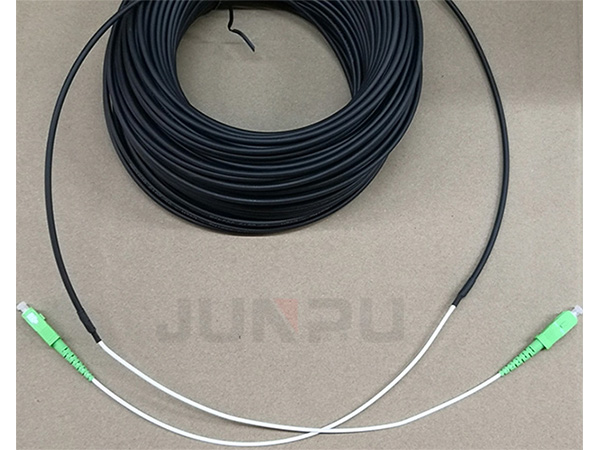

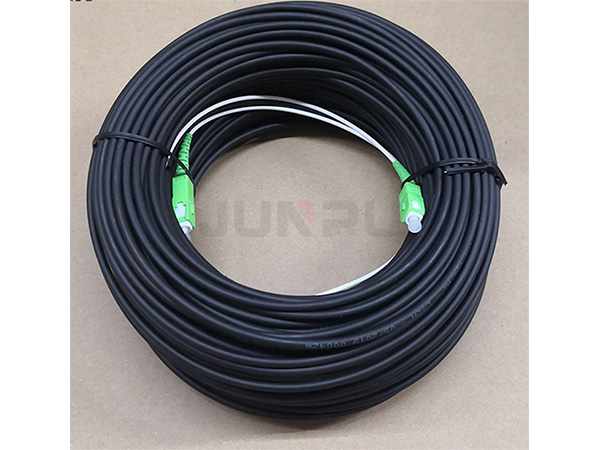

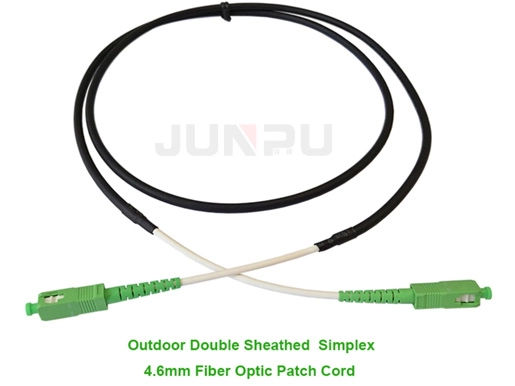

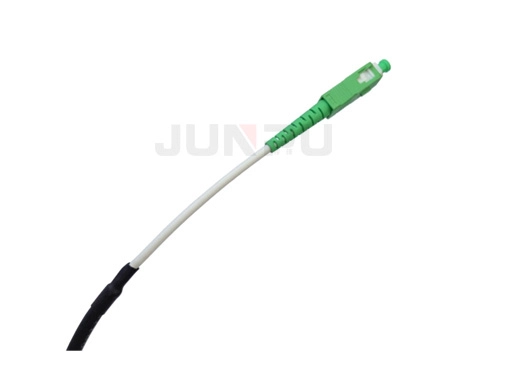

4.6mm Simplex Outdoor Fiber Optic Patch Cable

4.6mm Simplex Outdoor Fiber Optic Patch Cable

From a single 900um optical fiber with aramid yarn strength members and double LSZH jackets. The cable consist of a 900um multimode or singlemode optical fiber in a 3.0mm LSZH inner jacket with aramid yarn strength members. Aramid yarn non metallic strength members and final 4.6 mm LSZH outdoor jacket. Ideal for use in internal/external high electro-magnetic interferences FTTH applications horizontal, riser and duct.


Specifications of 4.6mm Simplex Outdoor Fiber Optic Patch Cable

Fiber ModeSinglemode or Multimode
Fiber count1
Connector StyleSC, FC, ST, LC, MU, E2000, DIN
Polish or Ferrule Interface TypePC, UPC, APC
Cable LengthsCustom Lengths
Jacket MaterialLSZH
Outer Jacket ColorBlack
Inner Jacket ColorWhite
Strength MemberAramid Yarn
Outer Jacket Diameter(mm)4.6 ±0.1
Inner Jacket Diameter(mm)3.0 ±0.1
Crush(N/100mm)1000
Maximum Tensile Load(Long term)150N
Maximum Tensile Load(Short term)400N
Storage Temperature(°C)-20°C to 60°C
Installation Temperature(°C)-5°C to 50°C
Operating Temperature(°C)-20°C to 60°C
