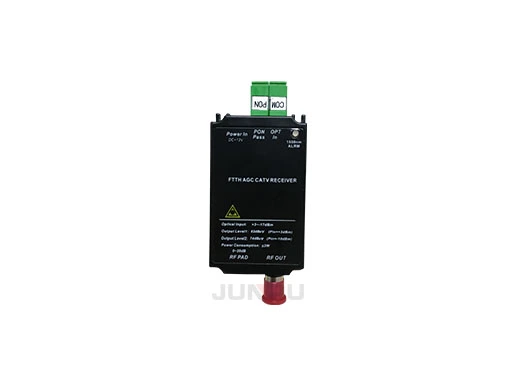

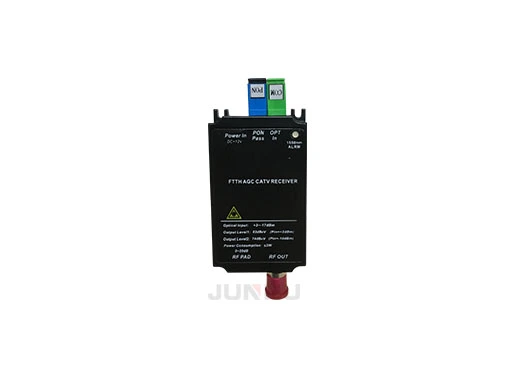

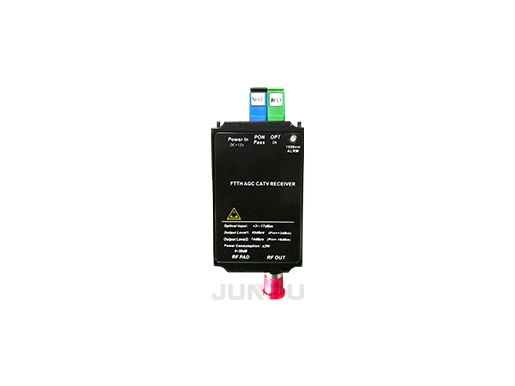

FTTH optical receiver is specifically designed for CATV HFC network with FTTH structure. Its main feature is low power consumption, AGC optical constant level output, small Volume and high reliability. Adopting aluminum alloy shell, with optical control AGC circuit built in, compact structure and external modular power supply make the installation and debugging very conveniently. It is an ideal product to build FTTH CATV network.
| Optical Parameters | |||
| Optical Wavelength | nm | 1290~1600 | |
| Optical Input Range | dBm | -17~+3 | |
| AGC Control Range | dB | -7~+2 | |
| Optical Return Loss | dB | ≥45 | |
| Optical Connector | SC/APC or FC/APC | ||
| RF Parameters | |||
| Bandwidth | MHz | 47~1000 | |
| Flatness | dB | ±1.5 | |
| RF Output Level | dBuV | ≥82(AGC Control:-7~+2dBm) | |
| Optical Return Loss | dB | ≥14dB (47~1000MHz) | |
| Optical Impendence | Ω | 75 | |
| MGC Control Range | dB | 0~20±2 | |
| RF connector | F-5 | ||
| CTB | dB | ≥65@-8dBm | |
| CSO | dB | ≥65@-8dBm | |
| CNR | dB | ≥48@-8dBm | |
| Others | |||
| Power Supply | Input Voltage | V | 110~240 AC@50/60Hz |
| Output Voltage | V | 12 DC@0.5A | |
| Power Consumption | W | <3 | |
| Working Temp | °C | -20~+50 | |
| Working Humidity | % | 0-90% | |
| Size | mm | 112(L)*50(W)*22(H) | |
1310nm and 1550nm working wavelength.
LED indicate for optical input alarm.
Hign-performance AGC control circuit insure optical output stability.
