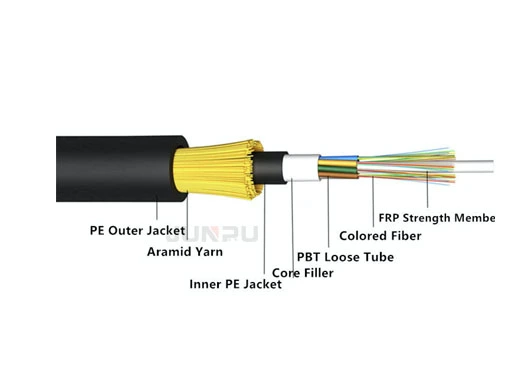

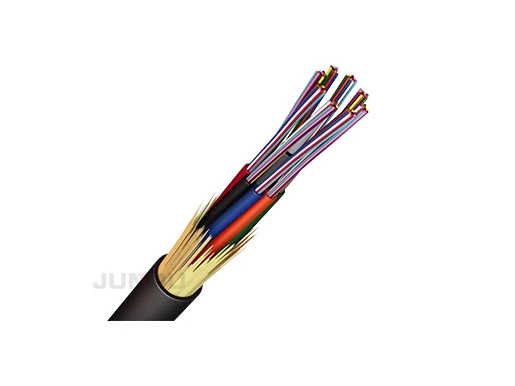

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

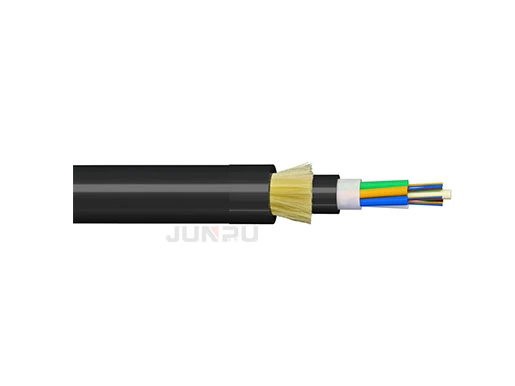

1 | Center Strength Member | FRP | ||
2 | Fiber Unit | Loose tube | PBT | |
Fiber | 48 Single Mode Fibers | G652D | ||
Fiber Quantity | 12 Pcs Fibers× 4 Loose Tubes | |||
Fiber Color | Blue, Orange, Green, Brown, Gray, White, Red, Black | |||
Loose Tube Color | Blue, Orange, Green, Brown, Gray, White | |||
Filling（Fiber Jelly） | Thixotropic Jelly | |||
3 | Water Blocking | Water Blocking Yarn | ||
4 | Water Blocking | Water Blocking Tape | ||
5 | Strength Member | Aramid Yarns | ||
6 | Ripcord | 1Pcs | ||
7 | Outer Sheath | PE | 10.3+/-0.5 | |
Technical Data Sheet | ||||
Item | Unit | Parameter | ||
Cable Standard Weight | kg/km | 80 | ||
Rated Tensile Strength(RTS) | N | 4200 | ||
Maximum Allowable Tension(MAT) | N | 1600 | ||
Every Day Strength(EDS) | N | 1050 | ||
Min-Bending Radius | Short-Term | mm | 20D | |
Long-Term | mm | 10D | ||
Crush Performance | Short-Term | N/100mm | 1000 | |
Long-Term | N/100mm | 300 | ||
Suiting Line Voltage Class | Not more than35 kV | |||
Span | m | 100 | ||
Suitable Meteorological Condition | Max wind speed: 25m/s, No icing | |||
Operation | When working or in store | ℃ | -40℃-+70℃ | |
Temperature | When laying | ℃ | -10℃-+50℃ | |
Fiber Attenuation Coefficient in Cable | dB/km(1310nm) | ≤0.36dB/km | ||
dB/km(1550nm) | ≤0.22dB/km | |||
Can be installed without shutting off the power
Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
Large span lengths and the largest span is over 1000m
Good performance of tensile strength and temperature
The design life span is 30 years
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
