All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure, can be set up without interruption.
Large number of fiber cores, light weight, can be laying with the power line, saving resources.
Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.
Can make single jacket or double jacket
Large span, the maximum span exceeds 1000 meters
Life expectancy greater than 30 years
Items | Specifications | |
Fiber Count | 24 | |
Colored Coating Fiber | Dimension | 250±15μm |
Color | Blue,Orange,Green,Brown,Grey,White | |
Loose Tube | Dimension | 2.0mm±0.05mm |
Material | PBT | |
Color | Blue,Orange | |
Filler | Dimension | 2.0mm±0.05mm |
Material | PVC | |
Color | Grey | |
Strength Member | Diameter | 2.1±0.05mm |
Material | FRP | |
Armaid Yarn | Span | 100M |
Material | Armaid Yarn | |
Outer Jacket | Dimension | 9.5. mm±0.5mm |
Material | HDPE | |
Color | Black | |
Nonmetallic environment required
Outdoor wiring

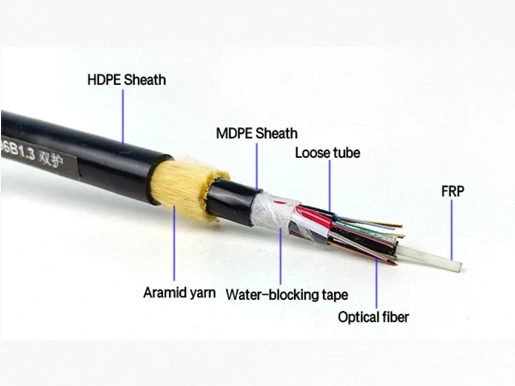

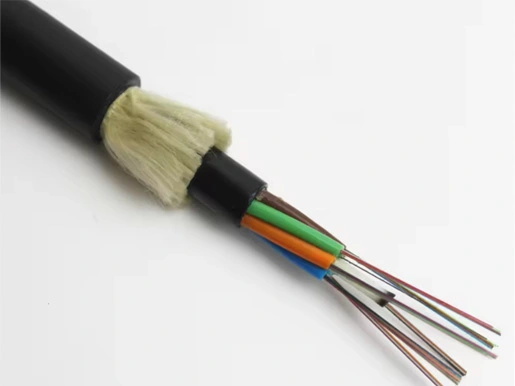

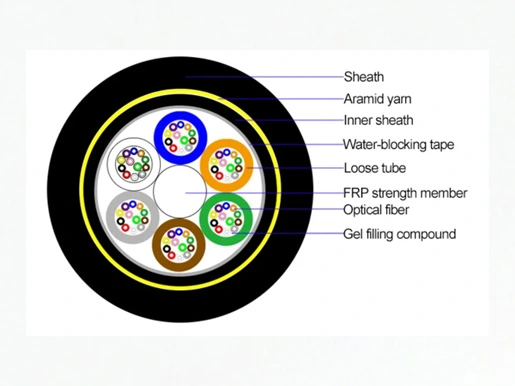

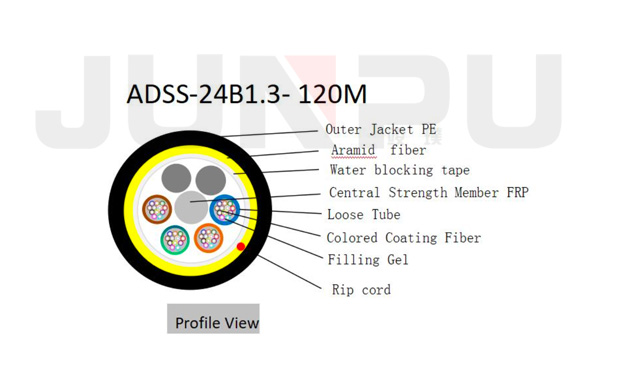

ADSS 24 Core Fiber cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength member, The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is a polyethylene (PE) inner sheath, then twisted high tensile strength aramid, normally use high-density polyethylene (HDPE) outer sheath or electric tracking (AT) outer sheath.
