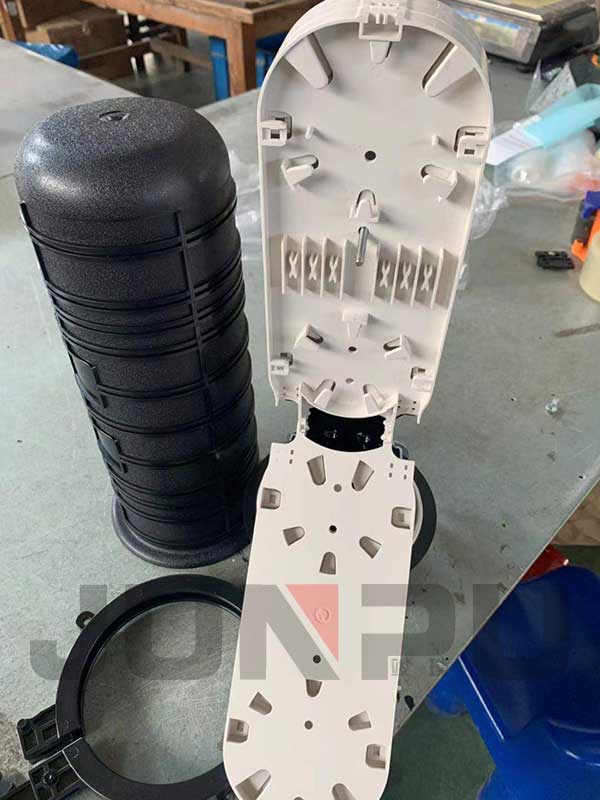

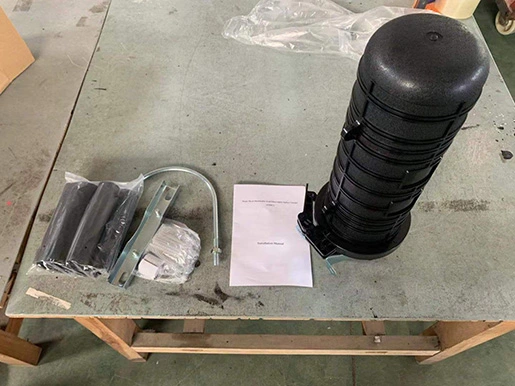

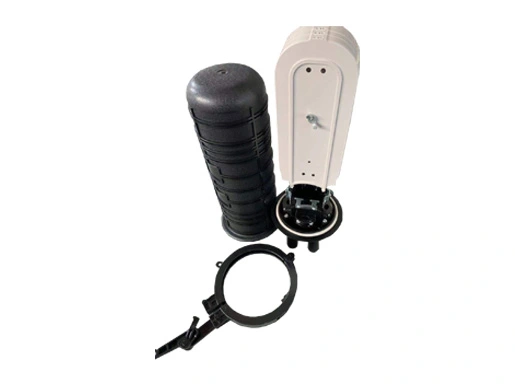

JUNPU D001 24 Core Dome Fiber Optic Splice Closure, the scope of application This Installation Manual suits the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation. The scope of application is aerial, underground, wall-mounting, duct-mounting, and handhole- mounting. The ambient temperature ranges.
| Outside dimension (Height x Diameter) | 435mm×190mm |
| Weight (excluding outside box) | 2350 g— 2600g |
| Number of inlet/out ports | 5 pieces in general |
| Diameter of fiber cable | Φ8mm～Φ25 mm |
| Capacity of FOSC | Bunchy: 12-96 (cores), Ribbon: up to 288 (cores) |
Depending on the fiber cable stripped, the following two cases are available.
① All fibers are to be branched after being spliced completely.
② Some of the fibers are for straight-through after being winded, while the others are for branch splicing.
The FOSC is provided with 3 single entry/exit tubes which suit for single fiber cables with max. diameter ф16mm and 1 mass entry/exit tube which suits for 1 piece of fiber cable with max. diameter ф 25mm or 2 pieces of fiber cables with max. diameter ф 21mm or multi-pieces of fiber cables with short diameter.
Mass entry/exit tube is required if some fibers are for straight-through.
