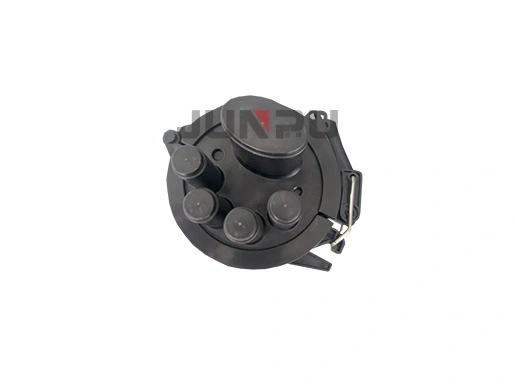

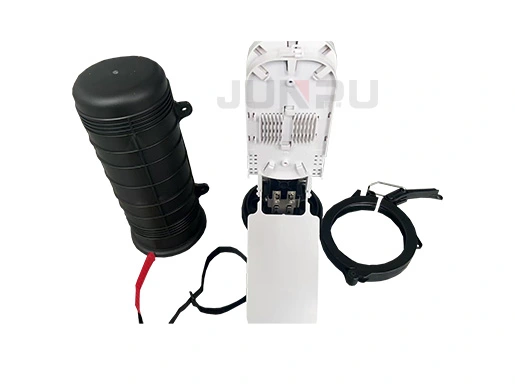

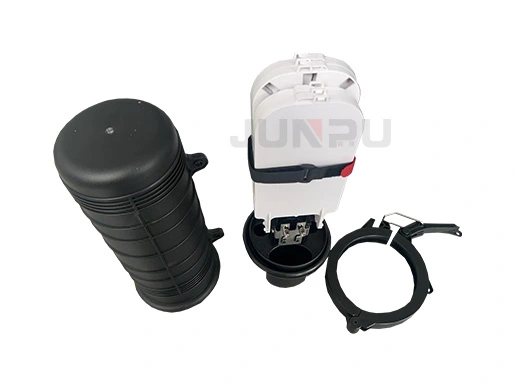

Mini 96 Dome Splice Fiber Optic Enclosure

Mini 96 Dome Splice Fiber Optic Enclosure

The is mainly used for optical fiber connection and protection . This kind of box is suitable for the connection of overhead , pipe and buried straight and branch.The box body and base are sealed with hoops and rubber.


MARKETS SERVED:

  • Telecom / FTTX Utility

  • Utility

  • Broadband Cable


Specifications of Mini 96 Dome Splice Fiber Optic Enclosure

ParameterSpecifications
Dimensions330*140mm
Weight735g
Cable port5
Working life25years
Environment temperature-40°C— +60°C
Tension800N/1min
Wafering2000N/100min
Impact1m/1.6kg steel ball/three times
Bending150N/±45°C/10cycles


Features and Advantages

  • Suitable for straight-through,diverging and connection of FTTH,FTTB all kinds of optical communication passive network Small core Horizontal fiber optic splice closure 2-2 Use material of high-strength PP synthetic plastics

  • Shell thickness≥4mm.enhanced insulation and heat resistance Corrosion resistance,aging resistance,excellent flame resists -nee and long working life.

  • Heat-shrinkable seal and sticky cincture seal. Repeatedly reuse,be able to expand capabilities,convenient to construct and install,good sealing


Installation method

Directly buried After inflate,it can be buried directly Wall-mounting:with hanging hook,it can be fixed up to the conduit.Aerial- hanger;with hanging hook,it can be hanged on the steel wire


Basic accessories

  1. Cabletie

  2. Heatshrinkabletube

  3. PVCtube

  4. Aerial-hangeraccessories

  5. Heatshrinkableprotectiontube

  6. Silver paper

  7. Alcohol paper

  8. Abrasive paper Ground lead
