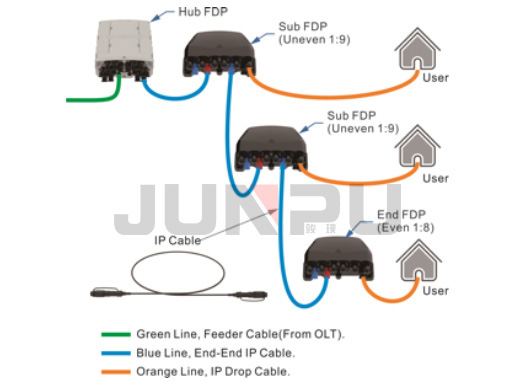

FAT-10-8P Fiber FTTH Pre-connected terminal Box was made by JUNPU Telecom and it is can be 8 ports and 10 ports. The end FTTH preconnected terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx telecommunication network system it can also provide feeder cable for the next SDSP after splitting. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Configuration Table
Model | FAT-10-8P |

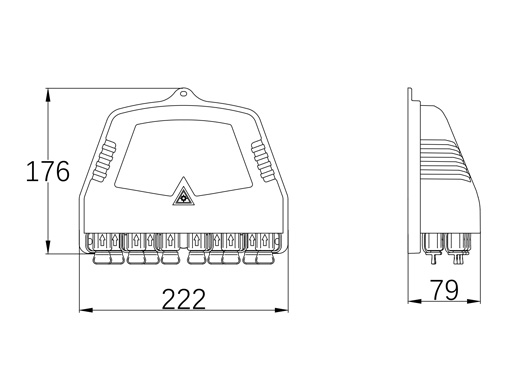

Size (Pic 1) | H×W×D = 176×222×79(mm) |
Material | PP+GF (Anti UV) |
Color | Black |
PR Connection Capacity | 10 Ports |
Adapter Type | SC |

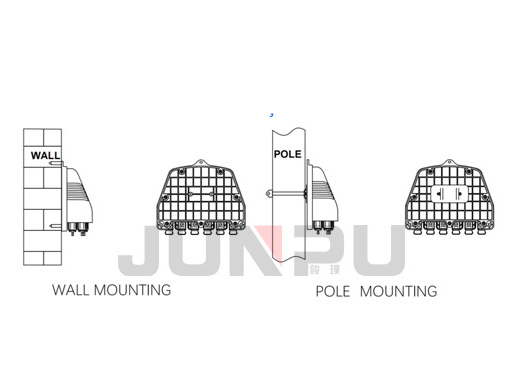

Installation Method | Wall Mounted & Pole Mounted |
Water-proof design with IP65 Protection level.
Integrated with splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for pre-Connectorized Cable Assemblies.
10 ports cable entrance for FTTH drop cable.
perform in accordance with IEC 61753-1 Table A.14.
Identification table labeling inside the cover.
FTTH access network
Telecommunication network
CATV networks
Data communications network
Local area networks
