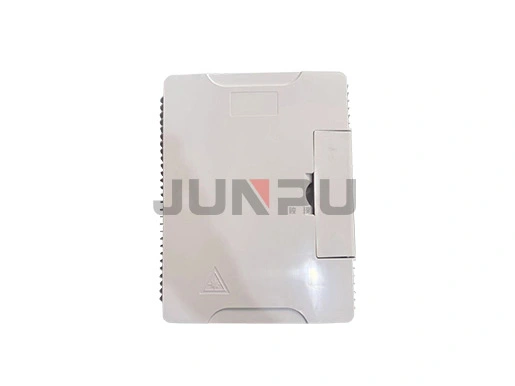

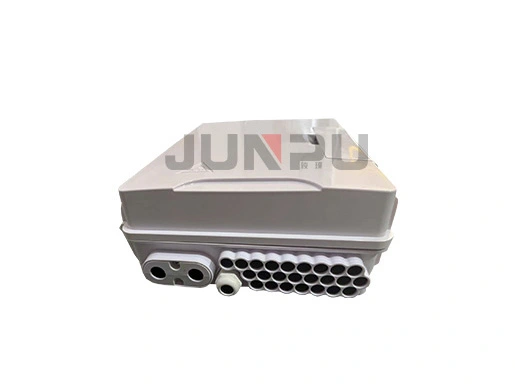

JUNPU 24 Core fiber optic distribution box is made with PC+ABS material. The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Table 1 Model and configuration
Model | Description | Size（Pic 1） | Max Capacity | Installation Size(Pic 2） | Cable ways | ||
A*B*C(mm) | SC | LC | PLC | D*E (mm) | |||
FAT-24B | Fiber Access Terminal | 340*250*110 | 24 | 48 | 1 x 1:16/ 3 x 1:8 | 145*120 | Cutted/uncutted cable |
Total enclosed structure.
Material: PC+ABS, wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP66.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

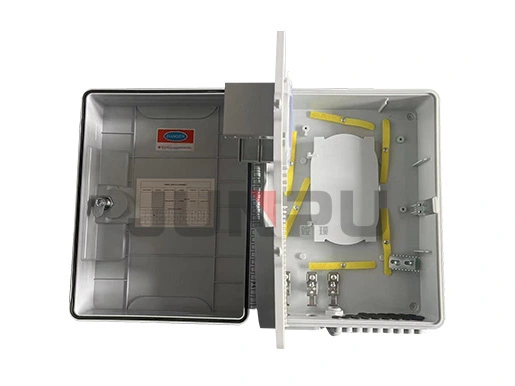

Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

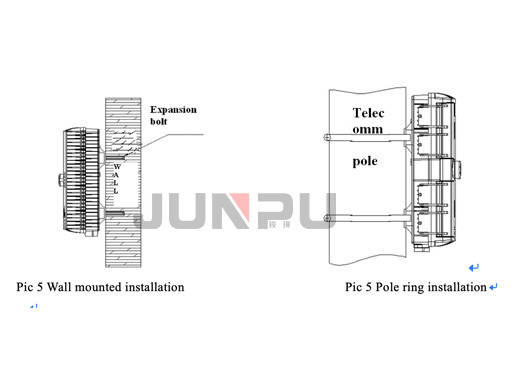

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
