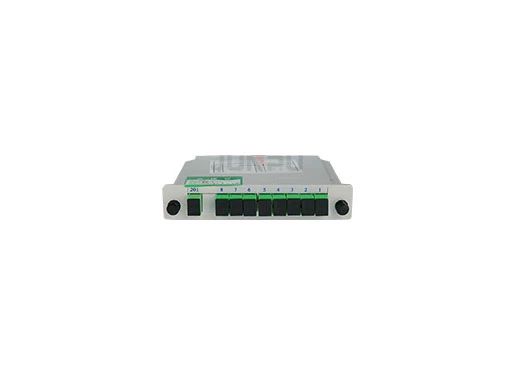

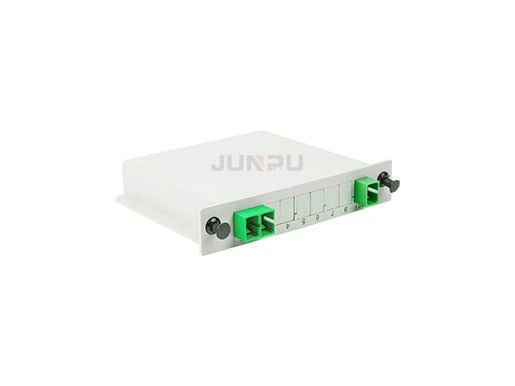

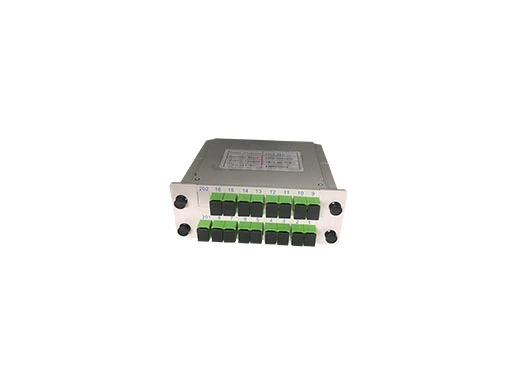

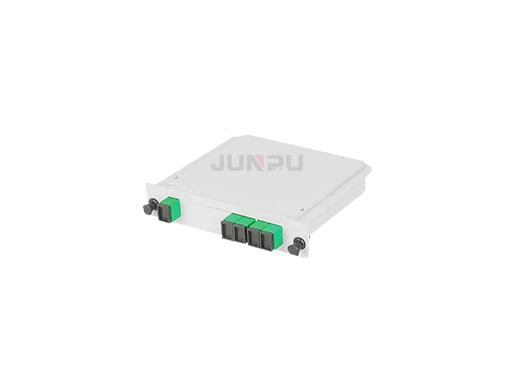

Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent loss | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Mechanical
Operating environment: -40ºC to +85ºC
Fiber input: 0.9mm or 250μm fiber for choice
Fiber optic equipment & systems
CATV networks
Data communications
Passive Optical Networks
