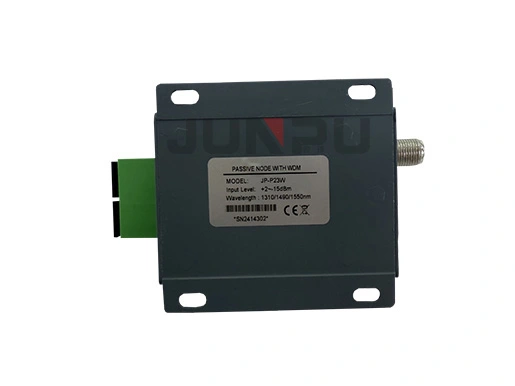

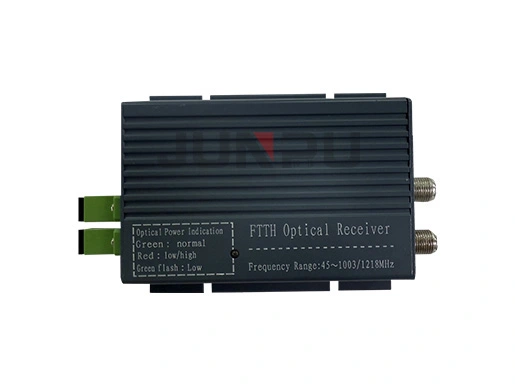

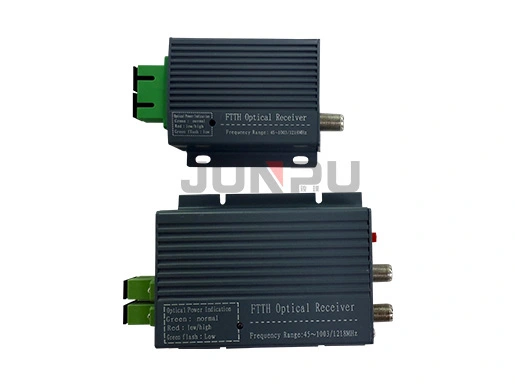

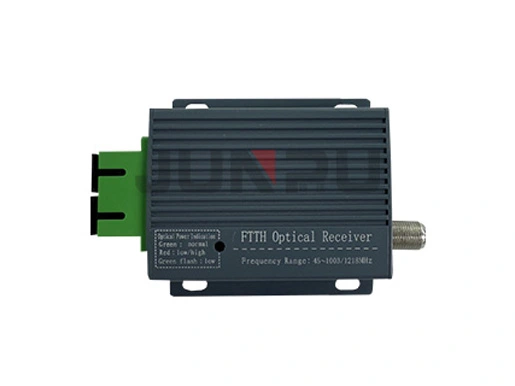

JUNPU popular passive triplexor optic wdm node This is a standard FTTH, equipment type is JP-P23W, input optical connector is SC/APC, RF output is 1 or 2 ports, connector form is metric, photoelectric tube only receives 1550nm light, with WDM, WDM connector form is SC/ APC


The digital modulation signal is transmitted within the rate range, the level of the digital modulation signal (within the 8 MHz bandwidth) is 10 dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0 dBm, measuring C/N, CTB, CSO.


Specifications of Passive Triplexor Optic Wdm Node

NODescriptionValue

Customer InterfaceXGPON Passive Node
1RF ConnectorF-female or F-male
2Optical Connector FormFC/APC or SC/APC or FC/PC or SC/PC

Optical Parameter
3Responsivity≥0.9A/W
4Input Optical Power2~-10dBm
5Optical Return Loss≥45dB
6Receive Wavelength1550nm
7Bypass Wavelength1310/1490nm
8Optical Fiber TypeSingle Mode

RF Parameter
9Frequency Range47~1000MHz
10In-band Flatness(dB)±1@45~1006MHz
11Output Level(dBµV)62@0dBm input power
12Output Port Number1
13CNR≥51dB
14CSO≥62dB
15CTB≥65dB
16RF Output Impedance75Ω
17RF Output Reflection≥16dB@ 47~550MH; ≥14dB@1006MHz
