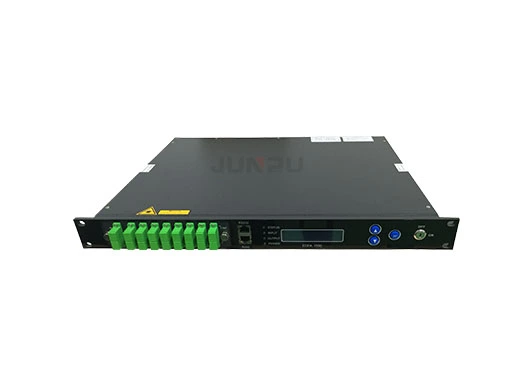

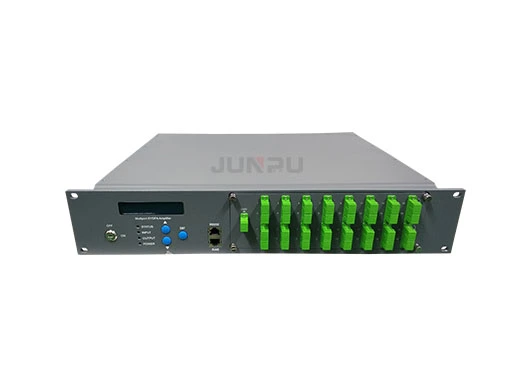

JUNPU 1550nm EDFA 16 Ports Optic Amplifier can be 1U and 2U rack. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.
JP3216EA(1/2RU) with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical feature | Operating wavelength range | (nm) | 1540 | 1563 | CATV | |
| Input power | (dBm) | -10 | 10 | |||
| Total output power1) | (dBm) | |||||
| Number of output ports | (pcs) | 32 | 4/8/16/32 | |||
| Each output power | (dBm) | 0 | 22 | 13 ~ 24dbm | ||
| Difference of output power | (dB) | -0.5 | 0.5 | |||
| Output power adjustable range | (dBm) | -6 | 0 | |||
| Noise figure (Pin=0dBm) | (dB) | 4.5 | 5 | |||
| 5 | 6 | |||||
| Switch time | (ms) | 8 | ||||
| Polarization dependence loss | (dB) | 0.3 | ||||
| Polarization dependence gain | (dB) | 0.4 | ||||
| Polarization mode dispersion | (ps) | 0.3 | ||||
| Input/output isolation | (dB) | 30 | ||||
| Pump power leakage | (dBm) | -30 | ||||
| Echo loss | (dB) | 55 | APC | |||
| General feature | Network management interface | RJ45 | SNMP | |||
| Power supply | (V) | 90 | 265 | 220VAC | ||
| 30 | 72 | -48VDC | ||||
| Power consume | (W) | 50 | ||||
| Operating temp. | (°C) | -5 | 65 | |||
| Storage temp. | (°C) | -40 | 80 | |||
| Operating relative humidity | (%) | 5 | 95 | |||
| Size (W)×(D)×(H) | (") | 19×14.3×1.75 | 2RU（2X19”） | |||
Total output power optional 500~10000mW(27~40dBm).
19" 1RU rack, optional output port up to 64 optional ports.
Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR, MER degradation of the system.
Low noise figure (Typ ≤4.5dB, Max ≤5.0dB).
Perfect RS232, SNMP.
Telecom level safety reliability and network management.
Simplified machine-room links, improve the system reliability.
Simple and reliable in construction/maintenance.
Optional dual optical input, built-in 2 × 1 optical switch.

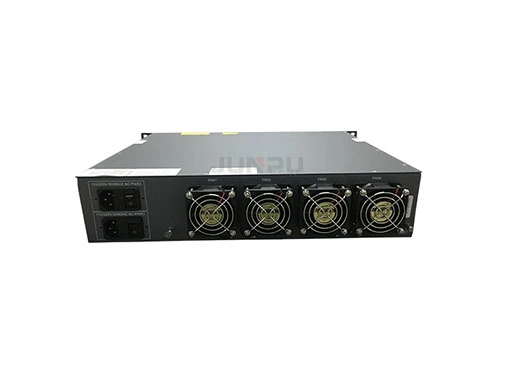

Dual power supply optional, 1+1 backup.
Can reduce the 98% device space usage.
Can reduce the 85% device purchase cost.
Can reduce 95% power consumption.
The best cost performance in the industry.
AM CATV
Digital CATV
DBS & MMDS
FTTx PON
