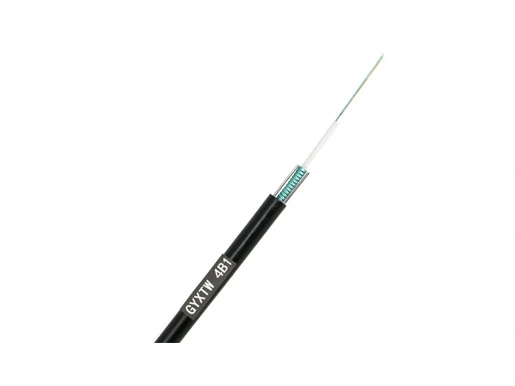

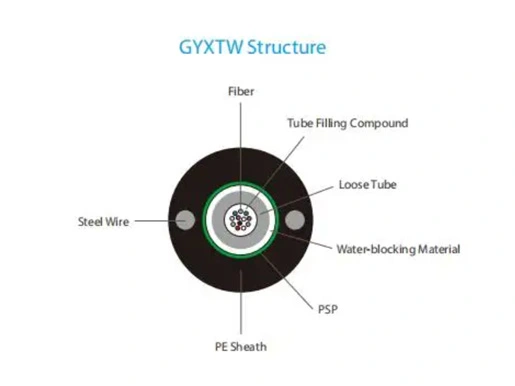

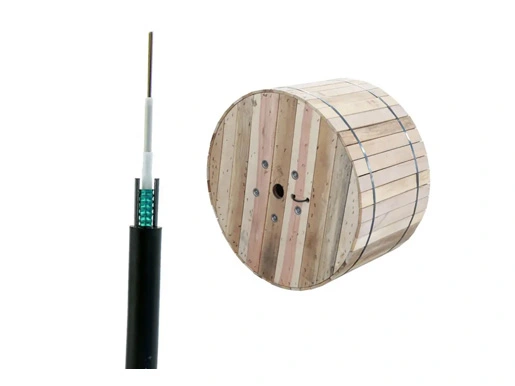

Fiber:
2-24 fibers
Uni-loose tube gel-filled
Armor:
Corrugated steel tape
Strength Member:
Embedded steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | ||
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | |||
| (+20X) | ||||||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | ||||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | ||||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | ||||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | |||
| 1300 nm | >500 MHz-km | >500 Mhz-km | ||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | ||||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | ||||
| Structure and Technical Specifications | ||||||
| Fiber Count | Nominal Diameter | Nominal Weight | Allowable Tensile Load | Allowable Crush Resistance | ||
| (mm) | (kg/km) | (N) | (N/100mm) | |||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
| 14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Uni-tube gel-filled construction for superior fiber protection.
CST armorto protect cable from rodentattack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and moisture-resistantdesign
Applications
Installed in duct, direct burial.
FTTx.
