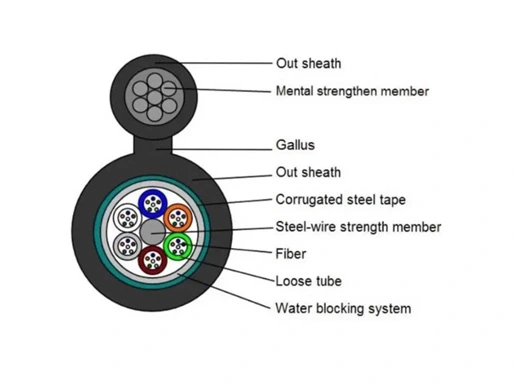

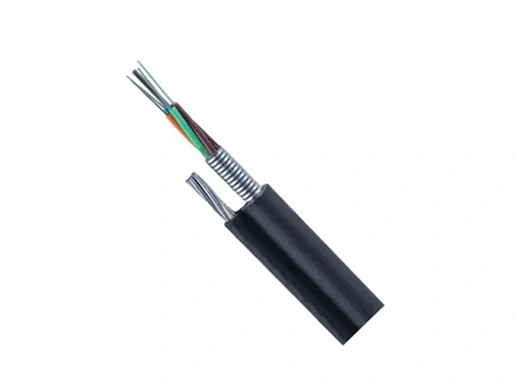

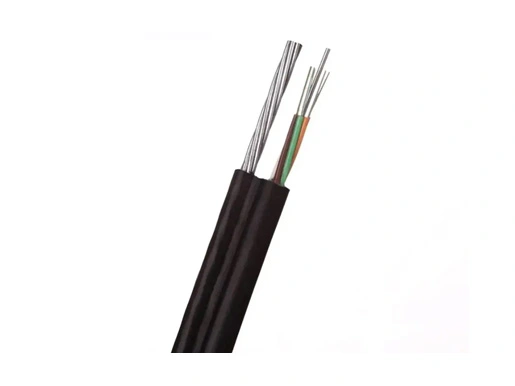

The GYTC8S Figure 8 cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
| Value | ||||||||
| Item | Contents | 24 | 48 | |||||
| Number | 4 | 4 | ||||||
| Loose tube | Outer diameter | 1.8 | 2.1 | |||||
| Filler | Number | 1 | 1 | |||||
| Max. fiber count pertube | ||||||||
| G.652D | 6 | 12 | ||||||
| Material | Steel wire | |||||||
| Central strength member | Diameter (mm) | 1.4 | 1.6 | |||||
| PE layer diameter (mm) | - | - | - | |||||
| Water barrier | Material | Water –proof Filling Compound | ||||||
| messenger(self-supporting) | 7/1.0 | |||||||
| Material | 7/1.0 | |||||||
| Steel wire | Steel wire | |||||||
| Material | MDPE | |||||||
| Sheath | Color | Black | ||||||
| Thickness (mm) | Nominal:1.6 | |||||||
| Number | 1 | |||||||
| Ripcord | Color | White | ||||||
| Cable diameter(mm) Approx. | 9.2x16.2 | |||||||
| Cable weight(kg/km) Approx. | 150±10 | |||||||
The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
Has good mechanical and temperature properties.
The loose tube material itself has good hydrolysis resistance and high strength.
The tube is filled with a special grease to protect the fiber.
Double coated steel strip (PSP) improves the moisture resistance of the cable.
Small diameter, light weight and easy to lay.
Long delivery length and low price.
Self-supporting Aerial Optical Fiber Cable
