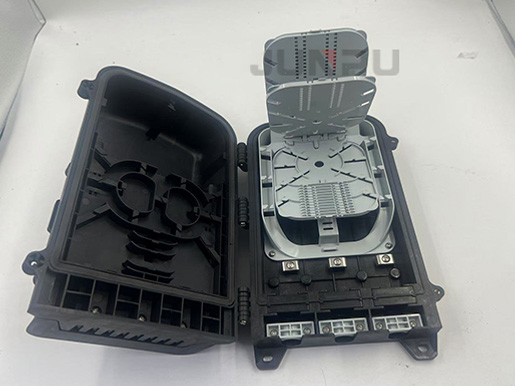

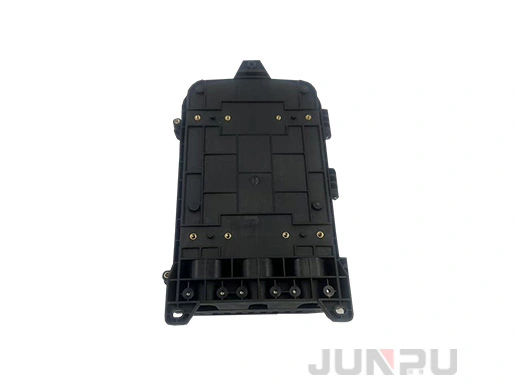

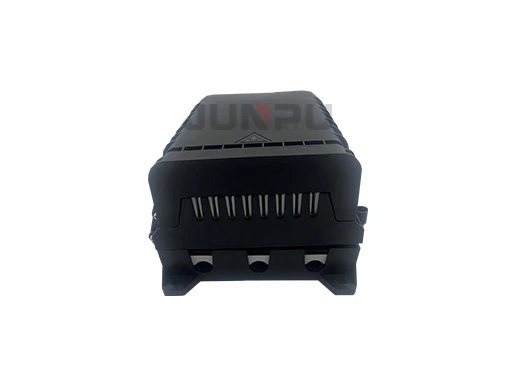

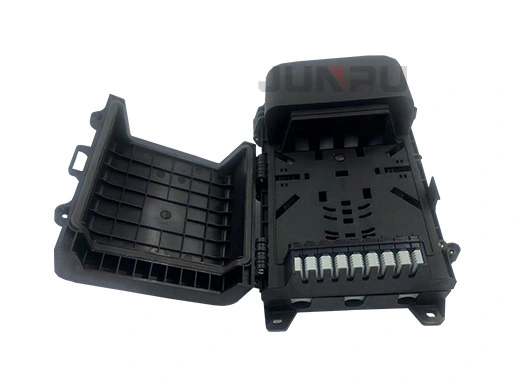

JUNPU Outdoor Fiber Distribution OTB Box with 16 SC Adapters, is a weatherproof enclosure for fiber optic terminations. It is ideal for FTTH (Fiber-to-the-Home) applications, providing a secure and organized connection point for feeder and drop cables.
Table I Model and configuration
Model | Size(Pic 1) A*B*C(mm) | Max Capacity | Installation Size D*E/F*G(mm) | Into the largest cable diameter(mm) | Cable outlet size (mm) |
16 CORE | 281.4*177*101.6 | 36 | 265*133/52*128.6 | o12 | 2*3 |
Technical Specifications:
Environmental: | |
Operating Temperature: | -40°C to +85°C |
Humidity: | Up to 85% at +30°C |
Atmospheric Pressure: | 70kPa to 106kPa |
Performance: | |
Insertion Loss: | ≤ 0.2 dB |
UPC Return Loss: | ≥ 50 dB |
APC Return Loss: | ≥ 60 dB |
Mating Cycles: | ≥ 1000 |
Lightning Protection: | |
Grounding Isolation Resistance: | ≥ 2 MΩ/500 V (DC) |
Withstand Voltage: | ≥ 3000 V (DC) |
