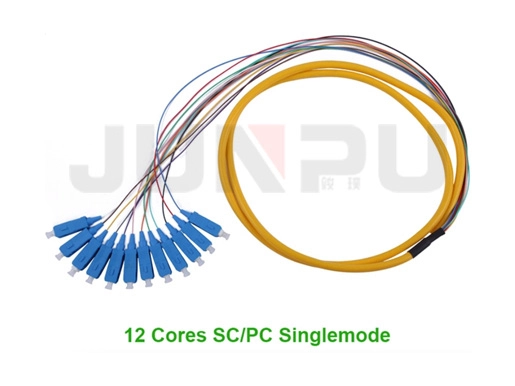

JUNPU 12 Cores Sc PC 900um Bundle Fan-out Fiber Optic Pigtail are made of multi core round bundle fiber optic cable, which is also called distribution fiber optic cable. It is generally installed in closet area like rack mount or wall mount splice boxes or patch panels.
| ITEM | Value |
| Fiber Type | OS2, OS1, OM1, OM2, OM3, OM4 |
| Fiber Count | 2,4,6,8,12,24,48,72,144 |
| Cable Type | Bundle cable, Ruggedzied Cable |
| Fan-out tubing diameter | 0.9mm,2.0mm |
| Connector | SC, LC, ST, FC, MU, MTRJ, |
| E2000, DIN, D4, SMA905 | |
| Jacket Type | OFNR (Normal), OFNP, LSZH |
| Insertion Loss | <=0.2dB |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
| Operating temperature | -40 ° C ~ 85 ° C |
| Storage temperature | -40 ° C ~ 85 ° C |

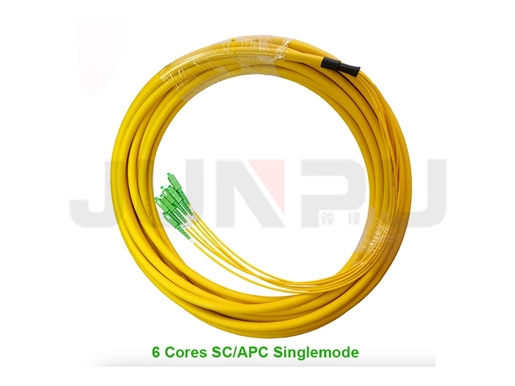

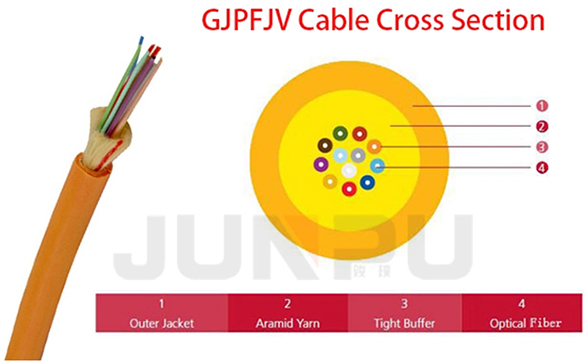

Bundle fan-out pigtail is an amount (2 -12 fibers) of 900 μm pigtails bundled in an outer jacket with kevlar and can be pre-connectorized or non pre-connectorized. Bundle fan-out Pigtail has the great advantage of giving less congestion than 12 individual pigtails with outer jacket and kevlar. Interfacility cable is routed on the splice unit, whether it is pre-connectorized or not. In case one connector fails or a fiber breaks, the complete Bundle Pigtail should not be replaced since the splice holder can be used to splice a new pigtail to the broken fiber. Fiber optic distribution patch cord contains individual 900 μm fibers with kevlar and outer jacket (up to 2.0 mm) and a strength member which are bundled in an outer jacket. These cables are constructed very high fiber count up to 144 fibers.
