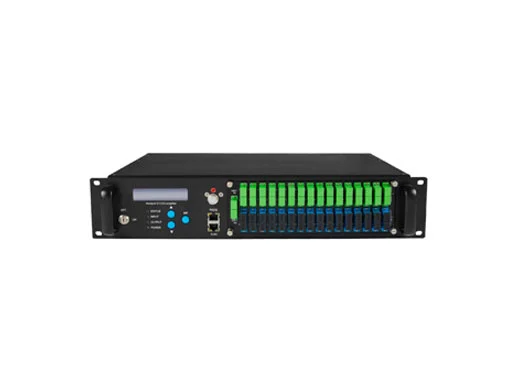

8, 16, 32, 40, 64 ports XGS-PON CATV EDFA WDM Combiner optical amplifier can be compatible with any FTTx XGS-PON, 10G AND PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.
XGS-PON CATV EDFA WDM Combiner is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1565nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

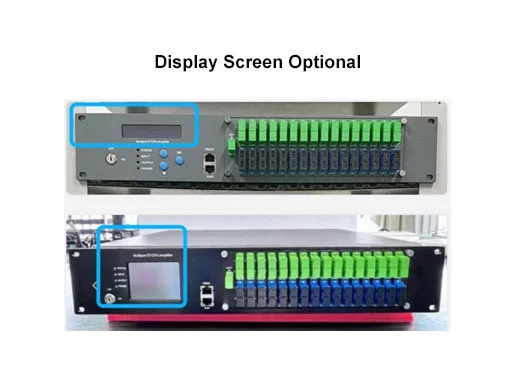

LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port of optical amplifier can be installed in the front panel or back panel.
JUNPU XGS-PON EDFA WDM with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical Feature | CATV operation wavelength | (nm) | 1540 | 1565 | CATV | |
| OLT XGS-PON pass wavelength | (nm) | 1310/1490 1270/1577 | ||||
| CATV pass wavelength loss | (dB) | 0.8 | 1550nm | |||
| OLT pass wavelength loss | (dB) | 0.8 | 1310/1490nm | |||
| CATV input power (Pi) | (dBm) | -10 | 10 | |||
| Number of output ports | (pcs) | 128 | ||||

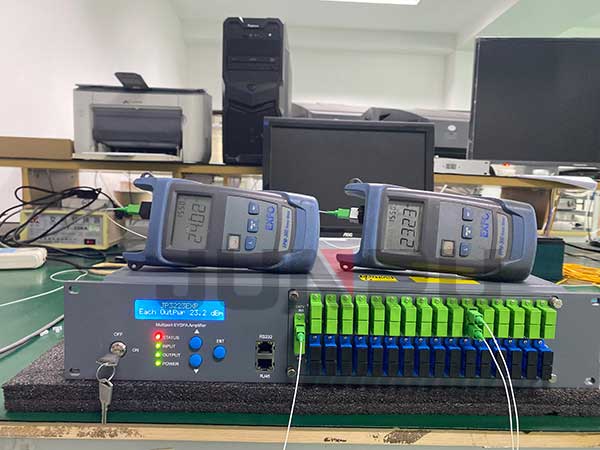

| Each port output power | (dBm) | 0 | 13 ~23dbm | |||
| Difference of each output power | (dB) | -0.5 | 0.5 | |||
| Output optical power monitoring | (dB) | -20 | ||||
| Output power adjustable range | (dBm) | -3 | 0 | |||
| Noise figure | (dB) | 4.5 | 5 | |||
| 5 | 6 | |||||
| Polarization dependence loss | (dB) | 0.3 | ||||
| Polarization dependence gain | (dB) | 0.4 | ||||
| Polarization mode dispersion | (ps) | 0.3 | ||||
1540~1565nm operating bandwidth for optical amplifier
Each output optical port is with built-in high-performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
Can be compatible with any FTTx XGS-PON, 10G, AND PON Technology.
Multi- ports output, can built in 1310/1490/1550 WDM
Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
With laser key to turn on/off the laser
Led displays the working condition of the machine
Dual power hot plug power supply for choice, 90V～250V AC or -48V DC
FTTx PON
XGS-PON, 10G PON Network
